The JVC LCCS: A Forgotten Revolution in Color Display Technology
The world of display technology is littered with fascinating innovations that, for various reasons, never quite reached their full potential. One such example is the JVC LCCS (Low Color Chroma system), a unique approach to color reproduction that offered a compelling option to traditional CRT methods. while it didn’t reshape the television landscape, the LCCS represents a brilliant piece of engineering and a tantalizing glimpse of ”what if.”
How Did the JVC LCCS Work?
At its core, the LCCS cleverly sidestepped the complexities of creating color images with a traditional CRT.Rather of relying on shadow masks or aperture grills to align red,green,and blue phosphors,it used a rapidly rotating color shutter. You can see a fantastic exhibition of this in action on YouTube (https://www.youtube.com/watch?v=z-q8ehzHeQQ).
Here’s a breakdown of the process:
The monitor sequentially draws the red, green, and blue components of each frame, perfectly synchronized with the spinning shutter.
This shutter filters the light emitted from a single-beam monochrome CRT.
Your eyes perceive the rapidly changing colors as a single, full-color image through persistence of vision.
Removing the shutter reveals a black and white image, but as the shutter spins, color magically appears. It’s a surprisingly elegant solution.
The Advantages of a Different Approach
The LCCS offered several distinct advantages over conventional CRT technology. These benefits made it particularly appealing for professional applications:
Enhanced Sharpness: Utilizing a single-beam monochrome CRT at a small tube size resulted in a remarkably sharp image. The system avoided the inherent challenges of creating fine shadow masks or aperture grills.
Increased Brightness: The LCCS produced a brighter image than comparable CRTs. This was a significant benefit for outdoor broadcasting, where sunlight readability is crucial.
Simplified Manufacturing: The design perhaps simplified the manufacturing process,though this didn’t translate into lower costs in practise.
A History Rooted in Innovation
JVC didn’t invent the core concept. The idea of using a rotating color wheel dates back to the CBS color wheel system of the 1950s. Furthermore, Tektronix patented a similar shutter system for its oscilloscopes as early as 1983 (https://www.tek.com/en).
However,JVC’s innovation lay in the complex image processing and electronic engineering required to convert a standard video signal into a format compatible with the LCCS. This wasn’t simply about adding color to an oscilloscope readout; it was about delivering a full-color NTSC signal.
A Moment in Time

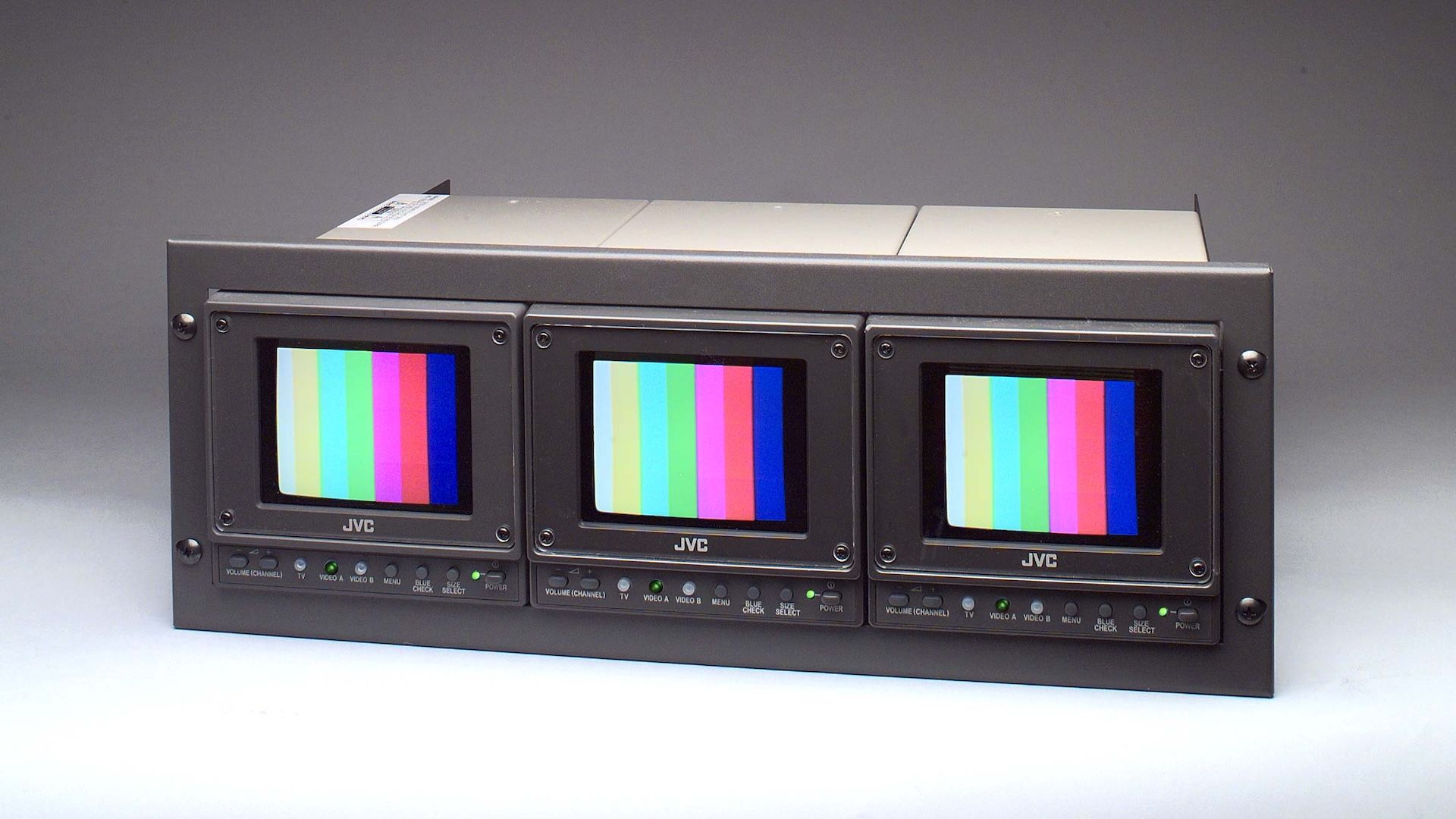

JVC released the LCCS monitor in 2000. The timing was unfortunate. The technology was only feasible with the advancements in processing power available at that time. Scaling the LCCS up to larger screen sizes proved problematic, as the weight of the larger tubes became prohibitive.
Like traditional CRTs, increasing the size presented significant engineering hurdles. The LCCS remained a niche product, and by the mid-2000s, crts where rapidly being replaced by newer display technologies.
Echoes of the LCCS in Modern Displays
While the JVC LCCS didn’t become a mainstream success, its principles live on in other display technologies.
DLP Projectors: Digital Light Processing (DLP) projectors frequently enough employ a spinning color wheel to create color images from a single chip.
Rapid Cycling Projectors: Some “4K” projectors utilize a similar persistence of vision technique, rapidly cycling a 1080p image to simulate a higher resolution (https://www.howtogeek.com/4k-projectors-vs-1080p-projectors-whats-the-real-difference/).
these technologies demonstrate the enduring appeal of sequential color reproduction.
